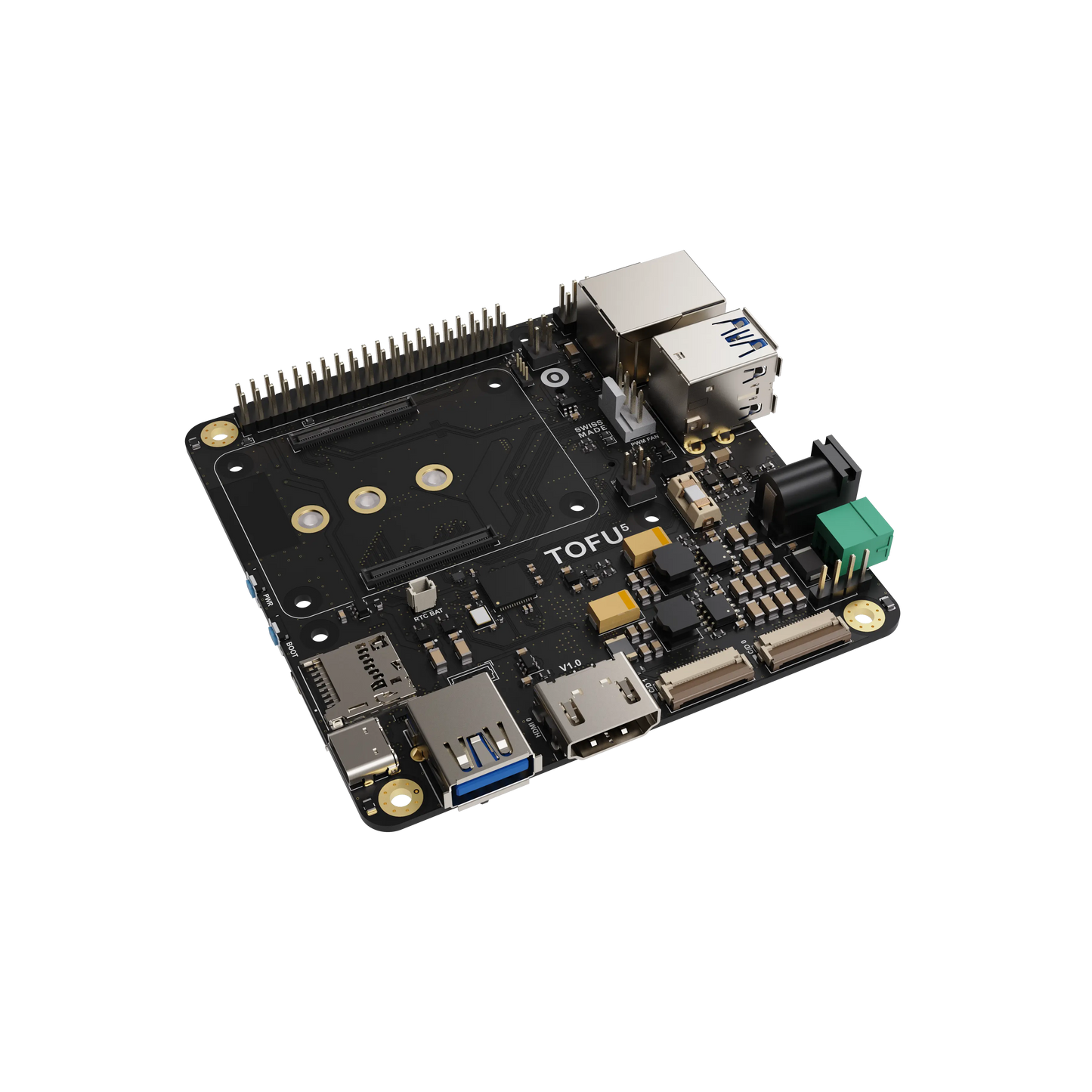

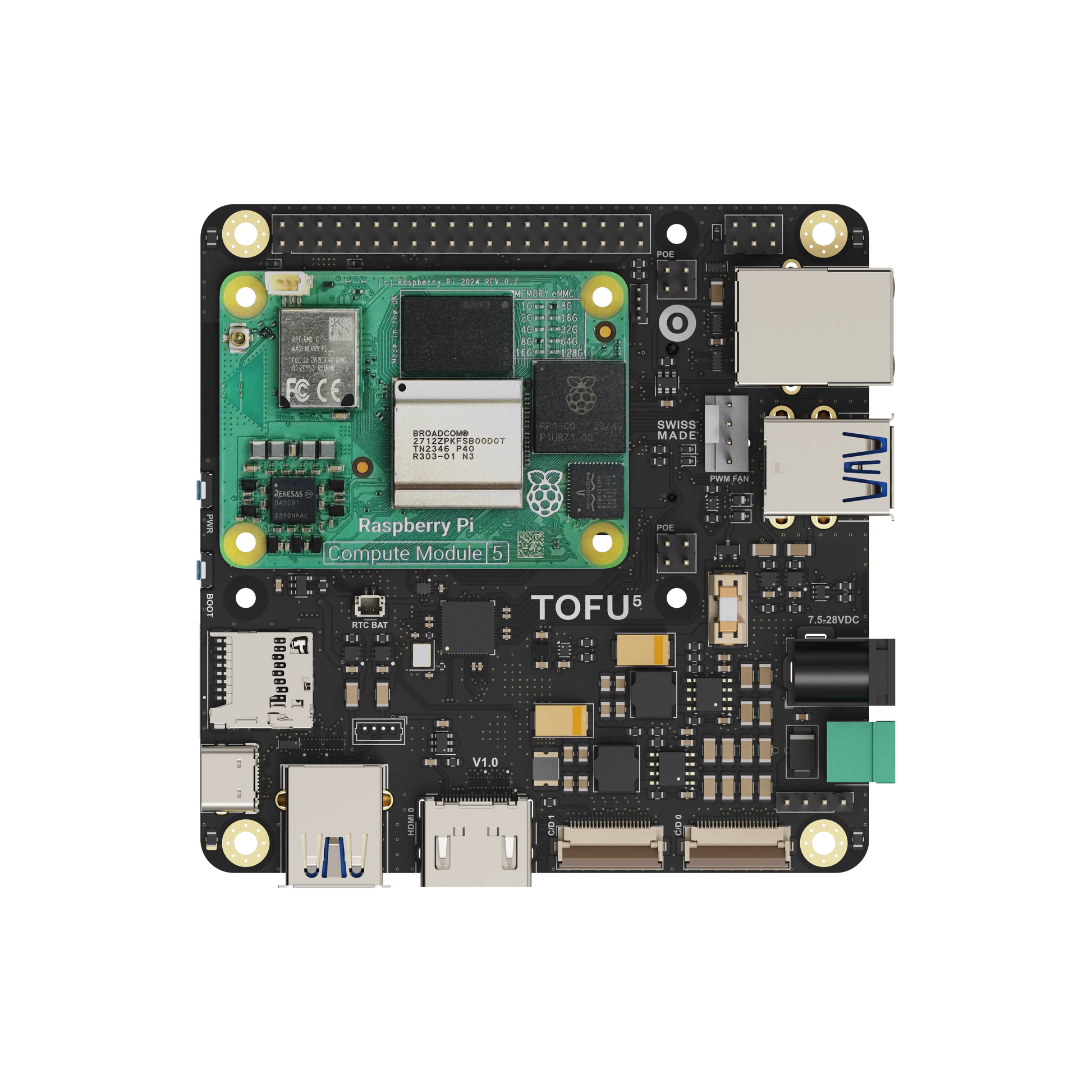

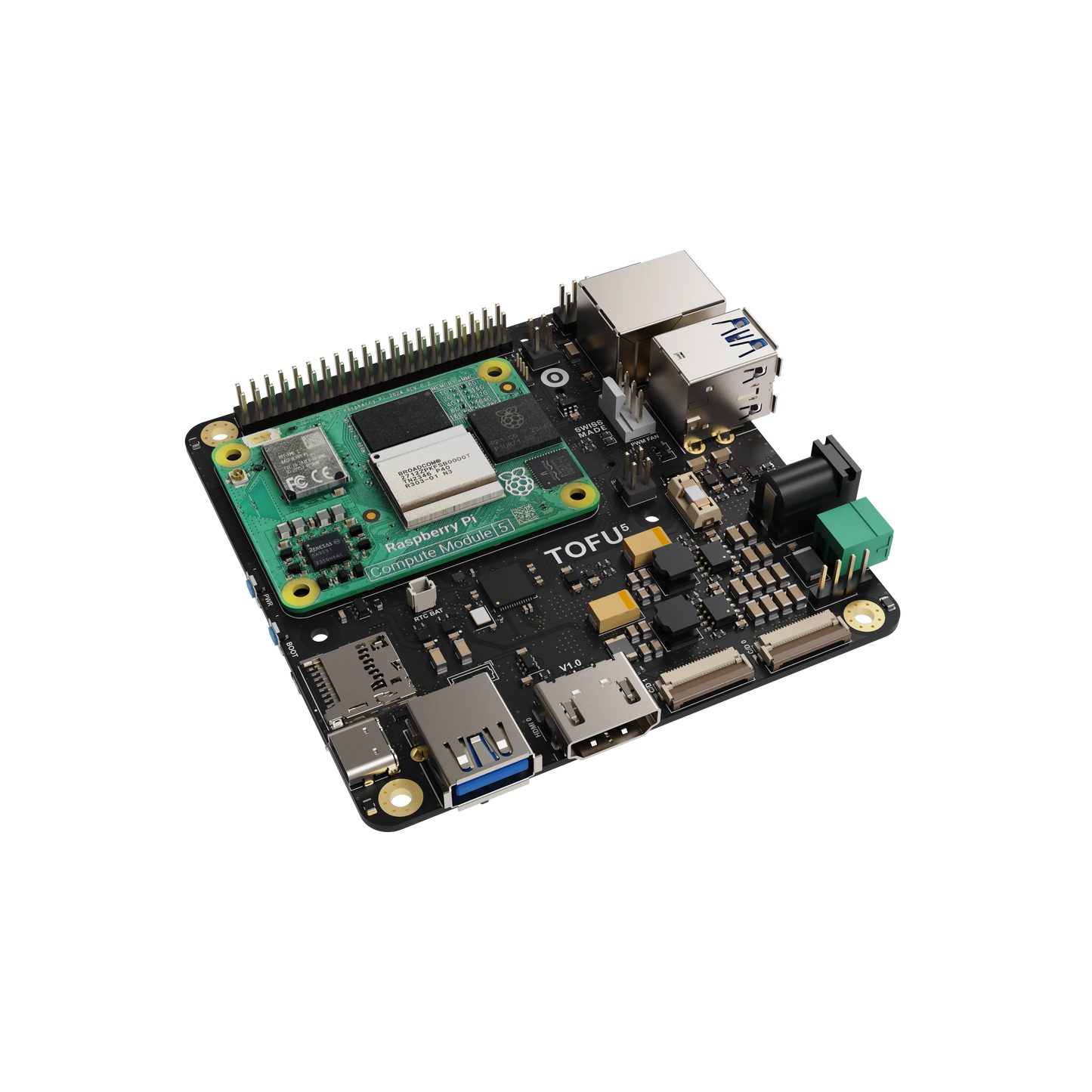

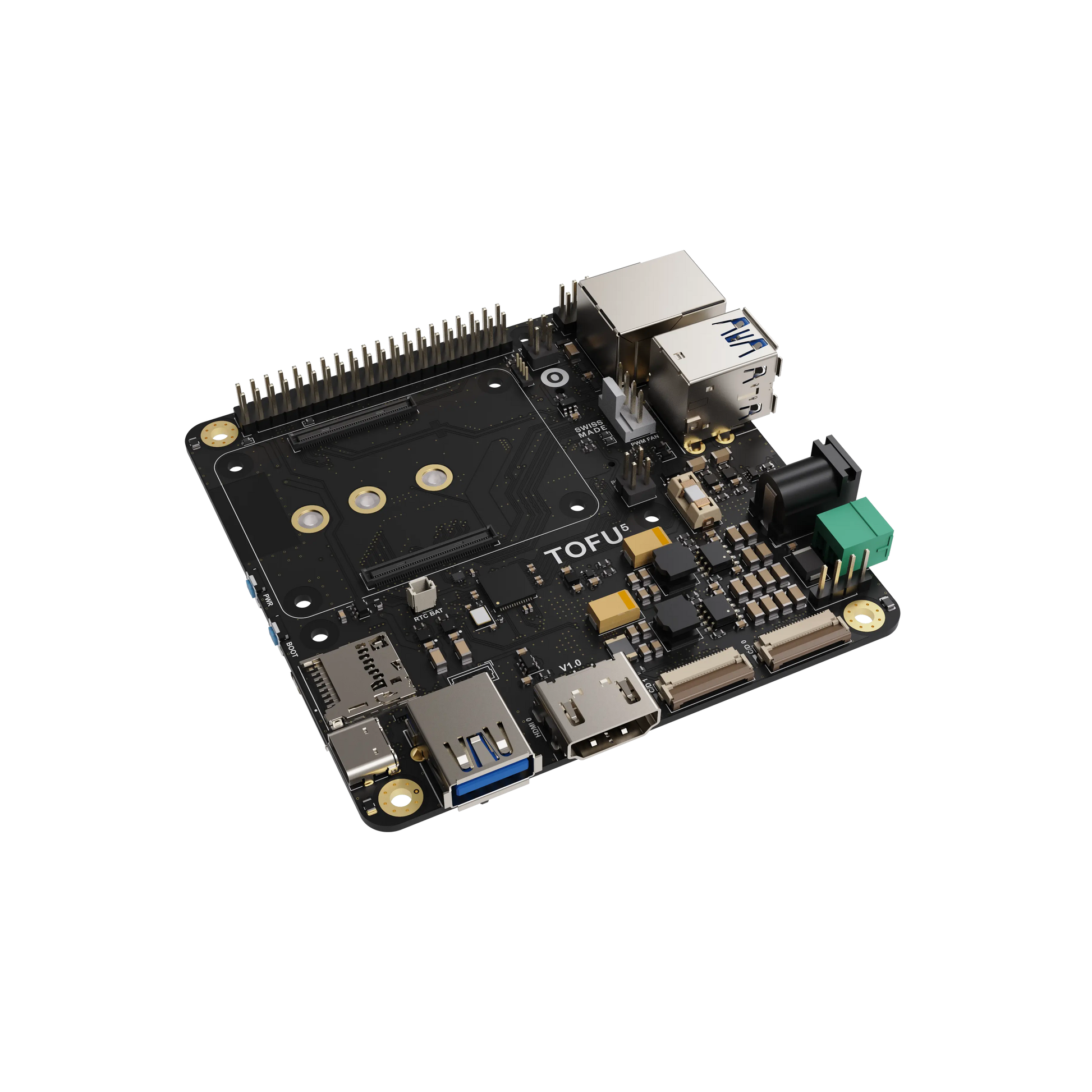

The TOFU5 carrier board is a carrier for Raspberry Pi Compute Module 4 or 5 (CM4, CM5). Building on the first TOFU board, it enhances many features, and adds extra functionalities. Sticking to the same footprint as the previous generation, this board is a pure upgrade to the TOFU V1.1.

With an updated and clever use of displays, cameras, faster USB3 ports when used with the latest generation CM5, the TOFU5 allows to upgrade your TOFU solution in a multitude of scenarios. The board enables applications over an extensive power range and includes more protections to handle every situation reliably.

A true building foundation for any hardware project!

🇨🇭TOFU5 is made in Switzerland 🇨🇭

==> Documentation: (Coming Soon)
==> GIFT: 🎁 Add FREE feet to your cart 🎁

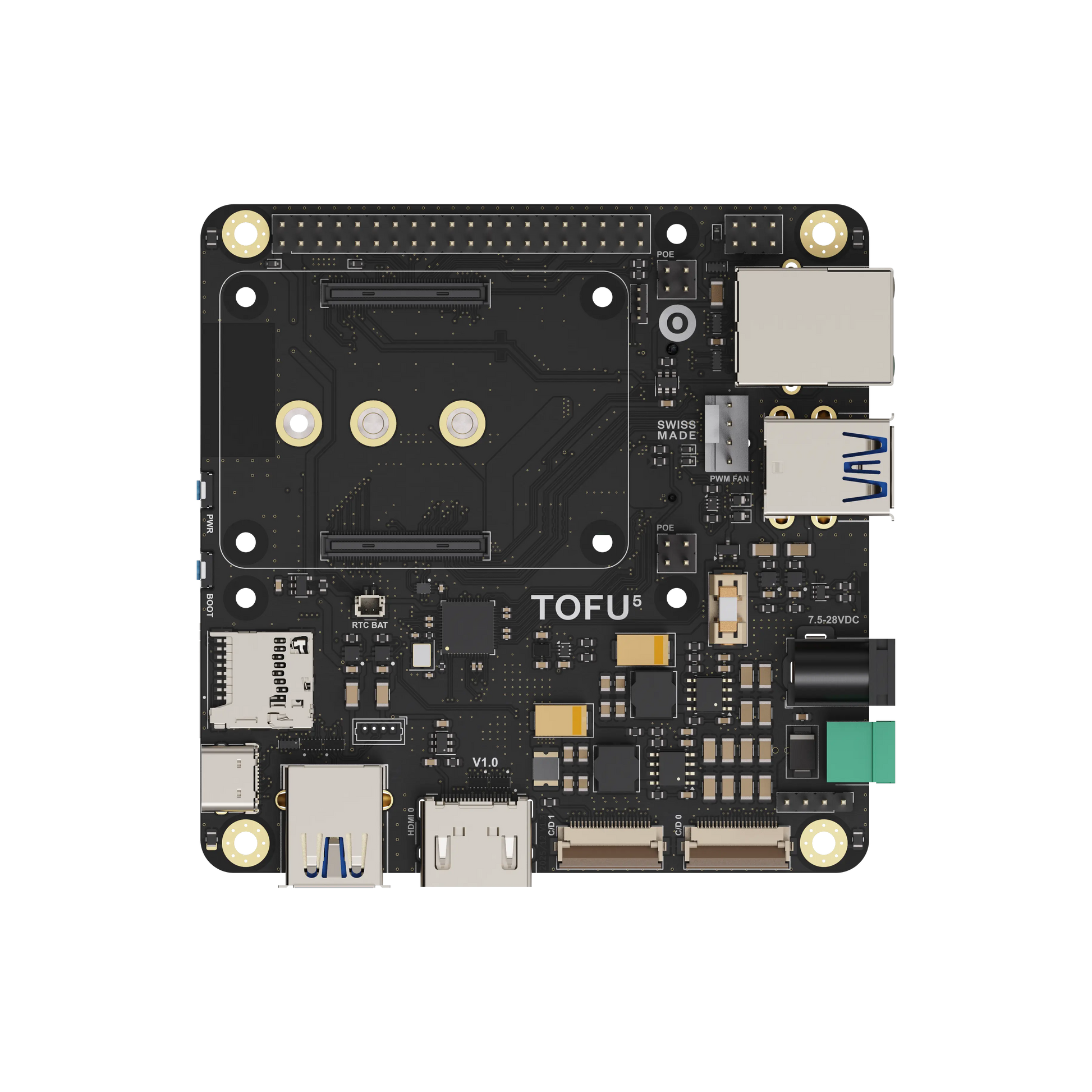

The size of the board is still 9x9cm, and its main features are :
Features in Italic are Not Available when used with CM4

• CM4 or CM5 Assembly Slot
• Standard Raspberry Pi 40-Pin Header
• 7-28V Input on Barrel Jack and Terminal Block
• 3.3V/5A and 5V/3A on Board Power Supplies (max 15W)
• Gigabit Ethernet Port, PoE/PoE+ Capability
  • Compatible both with CM4 and CM5 PoE HATs

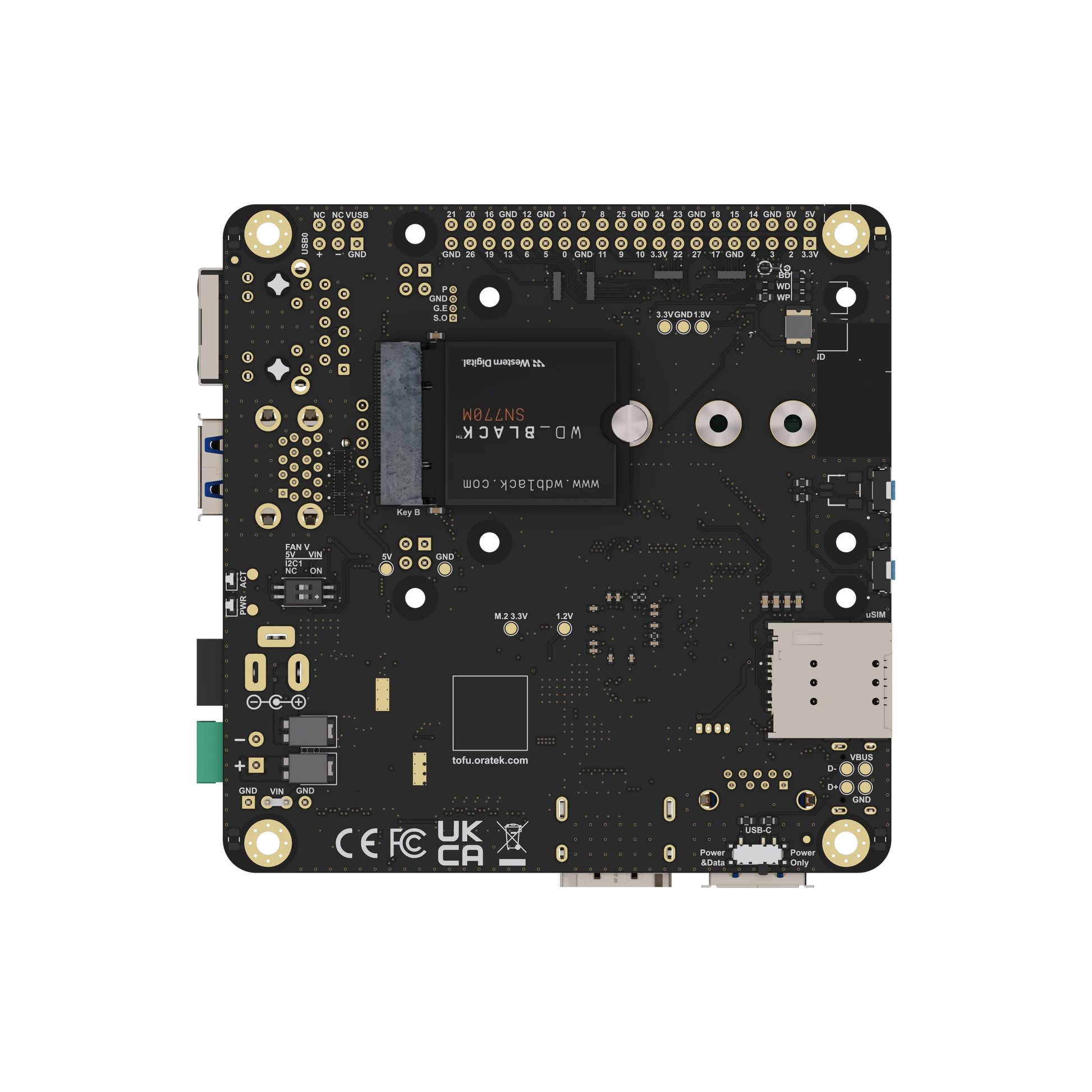

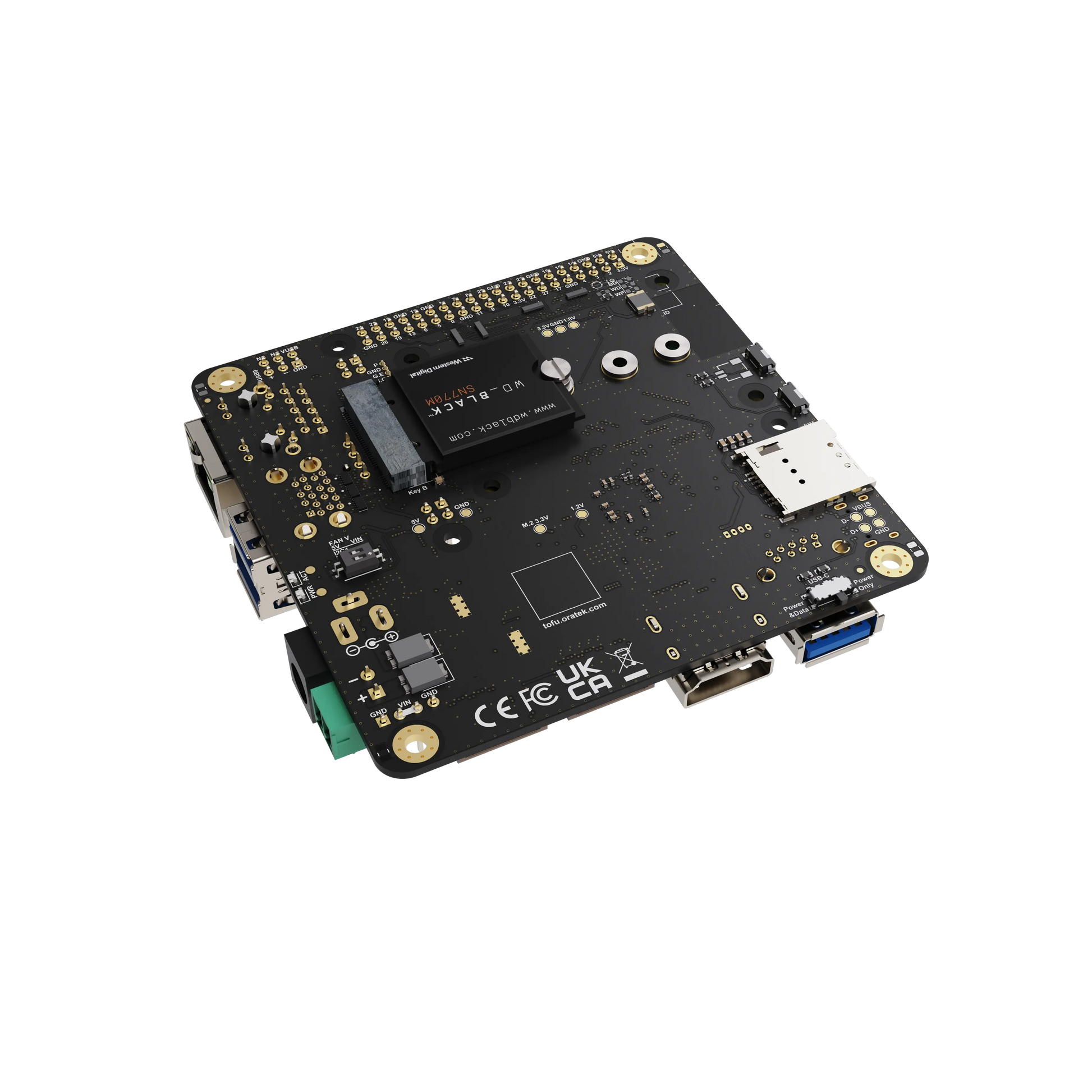

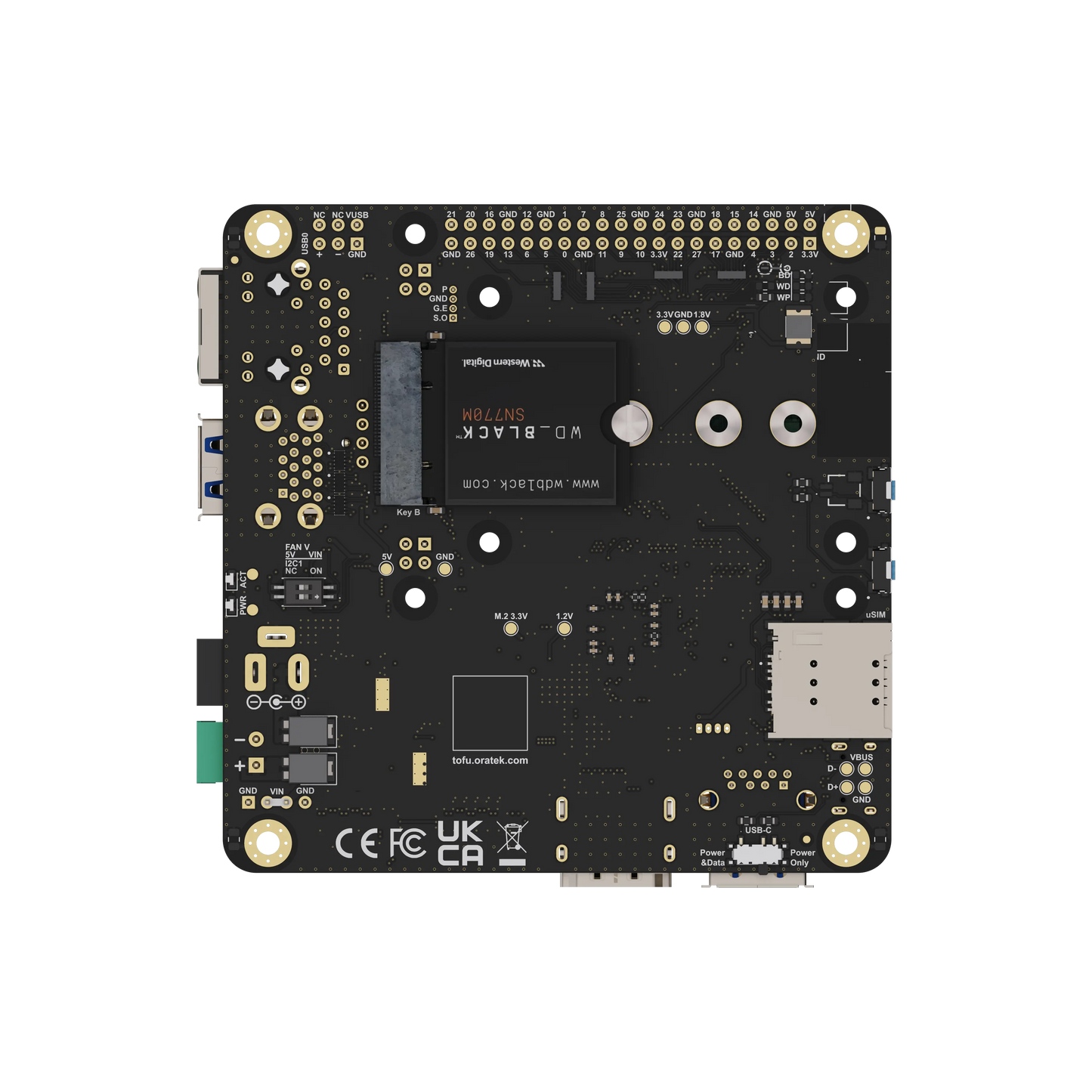

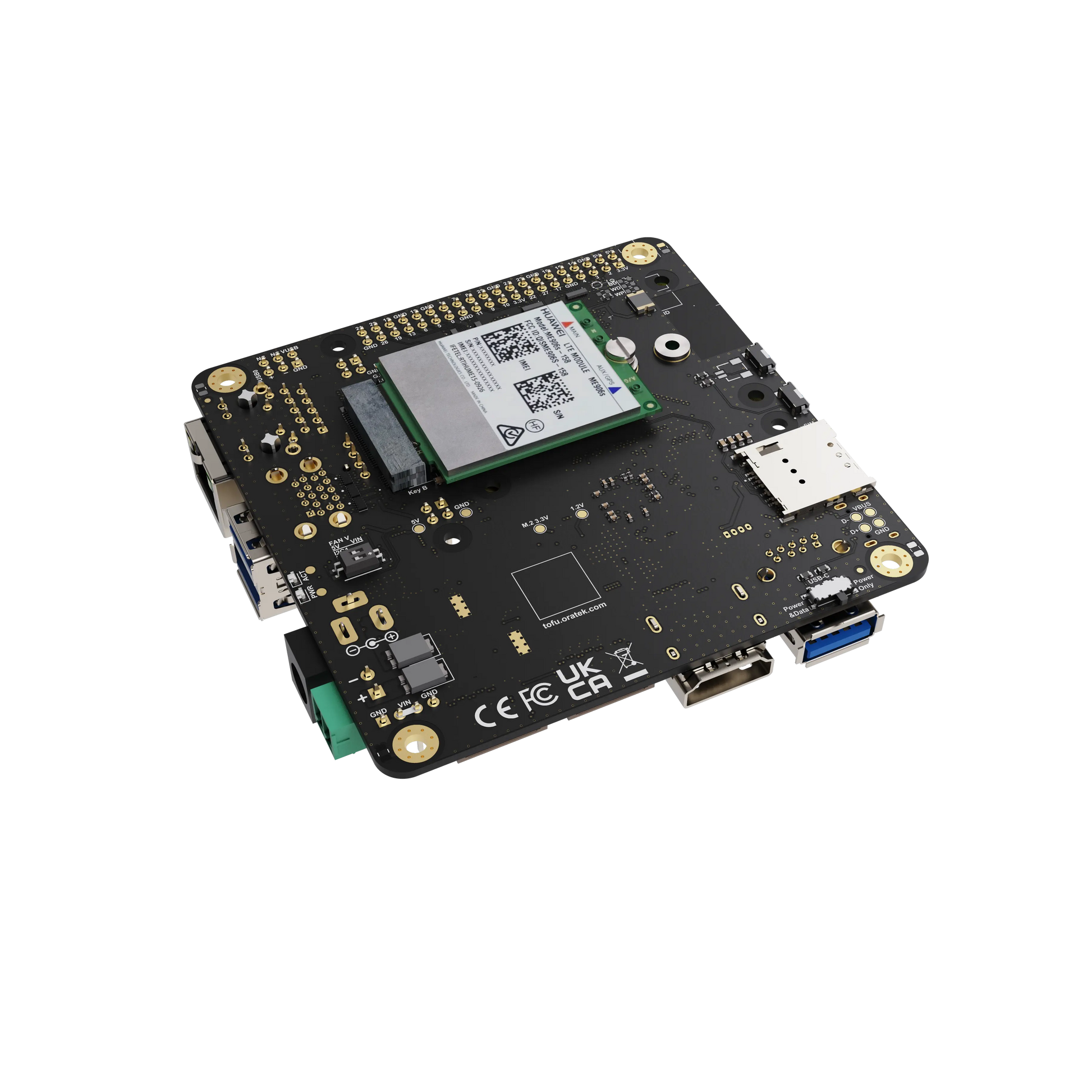

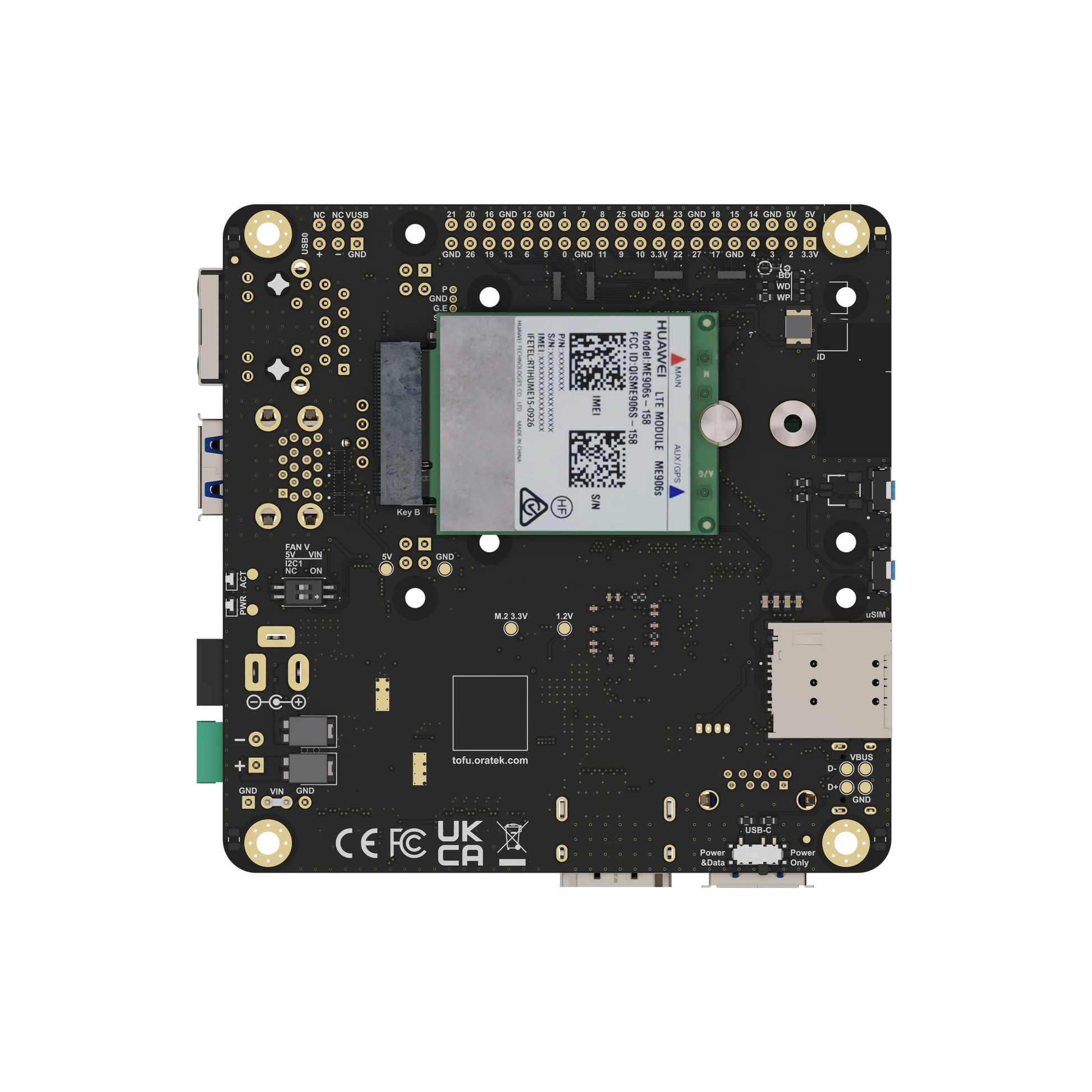

• M.2 Key B 2230/2242/3042/3052 Socket
  • PCIe (Gen2 x1) Connectivity
  • USB3.0 Connectivity (or USB2.0 when used with CM4)
  • microSIM Card Holder
• 3x USB3.0 Type-A Ports (or USB2.0 when used with CM4)
• 1x Full-Size HDMI Port
• 2x 4-Lane Camera (CSI)/Display (DSI) Hybrid Ports
• USB-C Power/Data Input with CM5-Enabled Power Delivery (PD)
  • Up to 5V/5A Input
• Micro SD Card Slot for Lite Modules
• 5V PWM Fan Port
• Activity, Power LEDs
• Boot Mode / PWR Button
• 2x Switch Inputs
  • (I2C1 Enable for Second CSI/DSI Interface)
  • Fan Voltage Selection (5V or VIN)
• Power Handling Capabilities
  • 3.3V Power Shutdown for all Interfaces
  • USB Power Shutdown
  • Key B Network Card Wireless Disable and Shutdown
• ESD Protection on All Inputs/Outputs
• Standard Raspberry Pi and 4 Additional M3 Mounting Holes
